Drop & Go® Fixed Rear Gantry Traffic Management Vehicle

Drop & Go® Fixed Rear Gantry TMV – a low-floor traffic management vehicle with a permanent rear gantry, designed for safe and efficient roadside operations.

Make An Enquiry

Download a Brochure

No items found.

Details About Features Brands

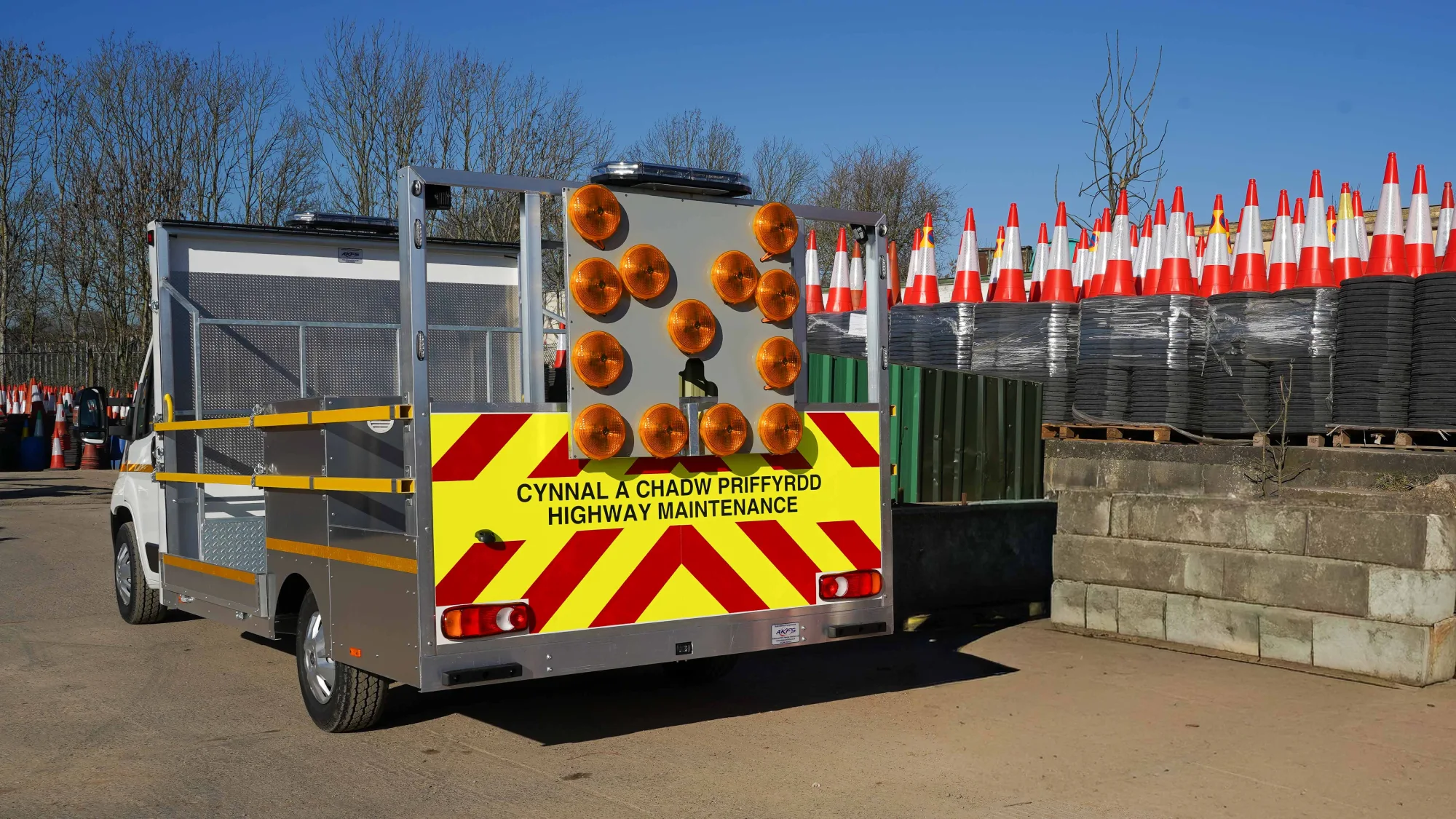

Drop & Go® Fixed Rear Gantry Traffic Management Vehicle

Purpose-built for the traffic management sector, the Drop & Go® Fixed Rear Gantry Traffic Management Vehicle combines the proven AKFS low-floor design with a fixed rear gantry configuration, delivering a safe, efficient and operator-focused solution for demanding roadside environments. From inner-city projects to high-speed road networks, its compact footprint and low-floor design help crews access areas where larger vehicles may be less practical.

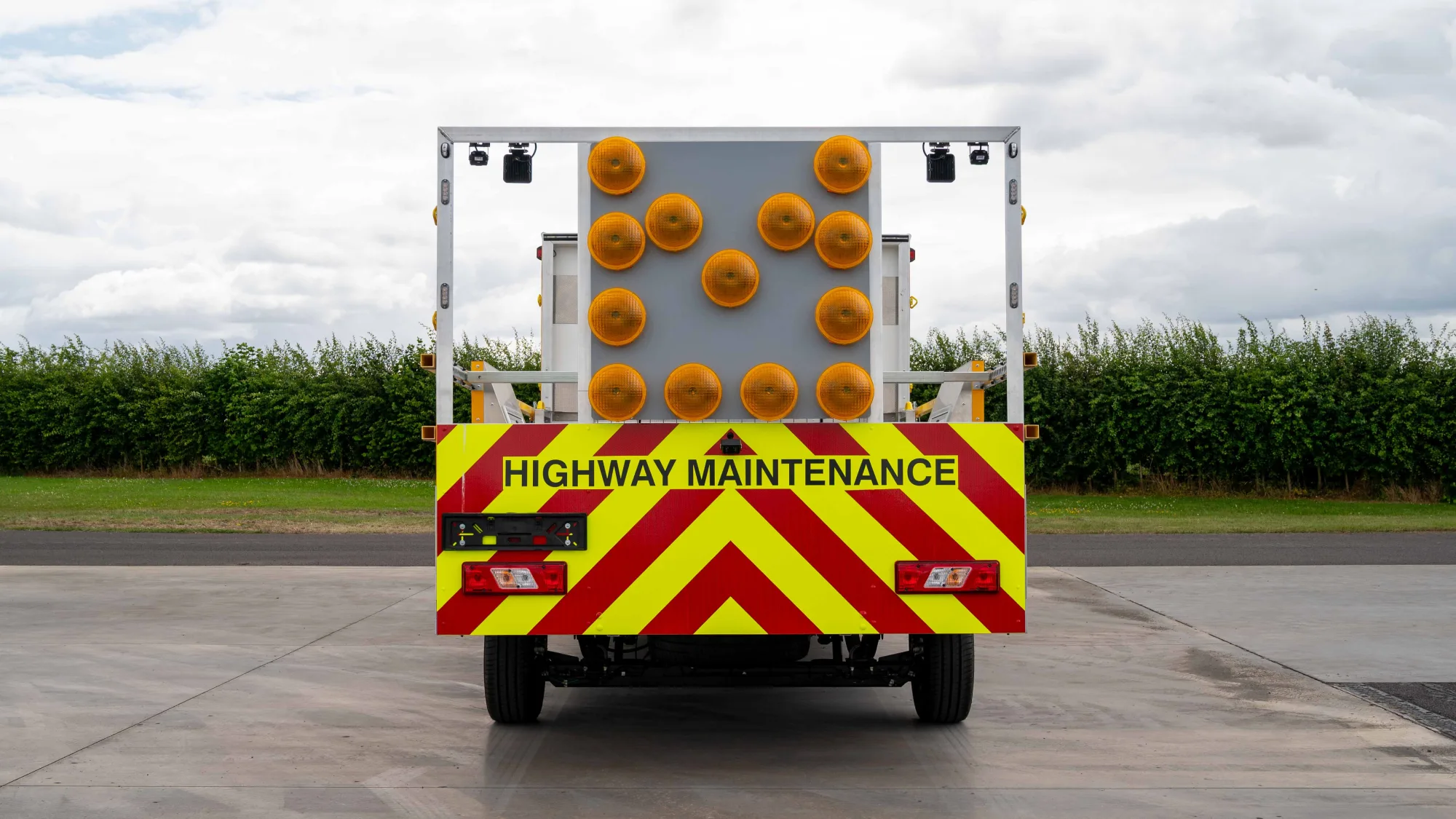

Developed around the low-floor chassis conversion by AL-KO Kober, the Drop & Go® features a load-floor height of just 550 mm, enabling fast, safe kerbside access for operatives and helping to reduce the risk of slips, trips and onboard injuries. The fixed rear gantry provides a permanent rear visibility solution for traffic management operations while supporting safer movement on and off the vehicle throughout the working day.

With a durable, slip-resistant aluminium floor, operator safety and day-to-day usability are built into the design. The Drop & Go® Fixed Rear Gantry TMV helps keep teams mobile, efficient and supported, trip after trip.

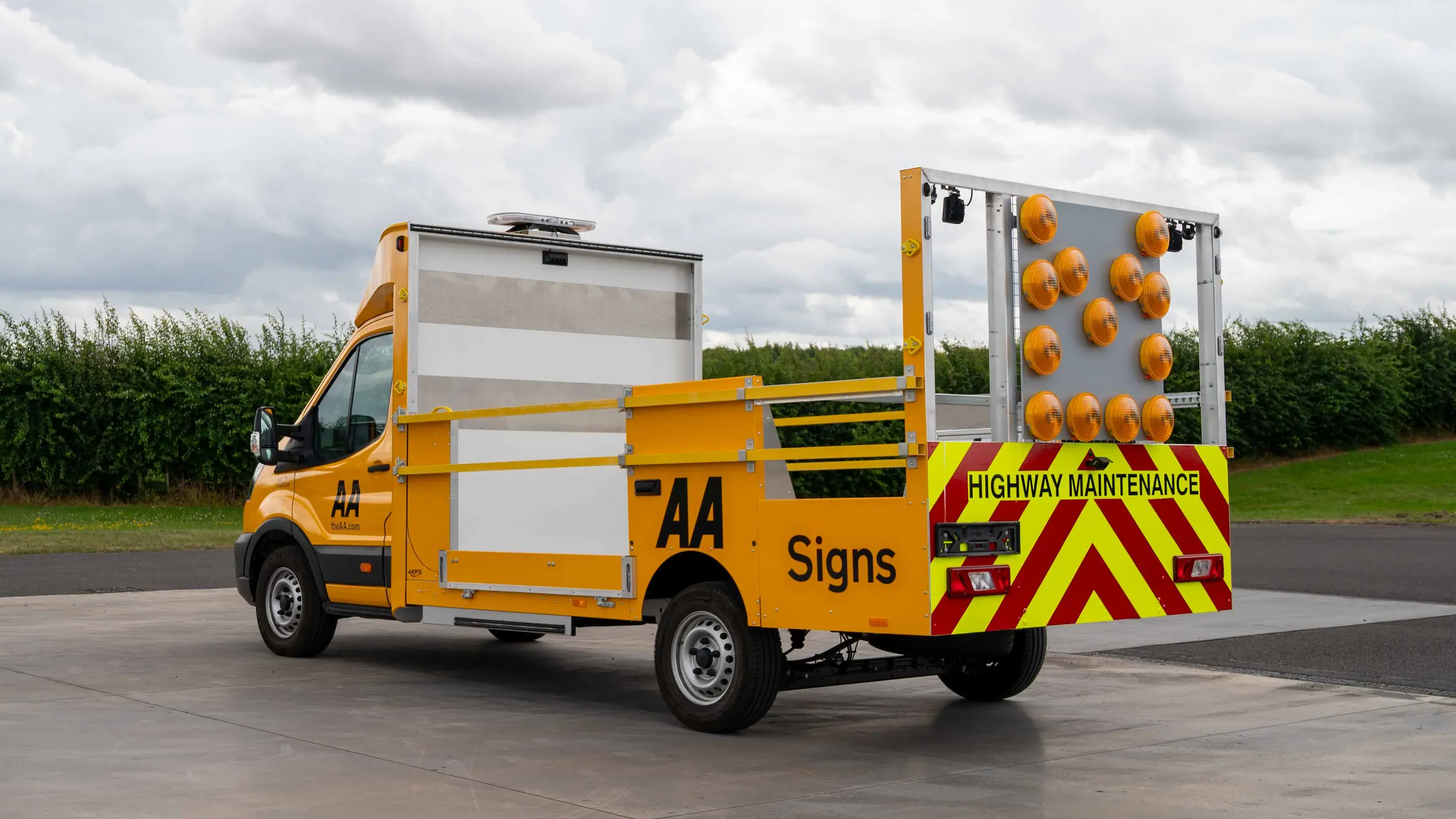

Why choose the Drop & Go® Fixed Rear Gantry TMV?

The Drop & Go® Fixed Rear Gantry TMV is designed for operators who need the benefits of a low-floor traffic management vehicle with a permanent rear gantry configuration. Its low-floor access, fixed rear visibility solution and practical body layout support safer, more efficient roadside working across a wide range of traffic management operations.

From From 2035 kg Kerb Weight
Kerb Weight

Standard Features Include:

<li>Low 550mm bed height, dependent upon chassis type</li>

<li>Slip-resistant aluminium ribbed floor</li>

<li>Type-approved chassis conversion with 3900mm–4500mm bed lengths (3900mm on non-Stellantis conversions)</li>

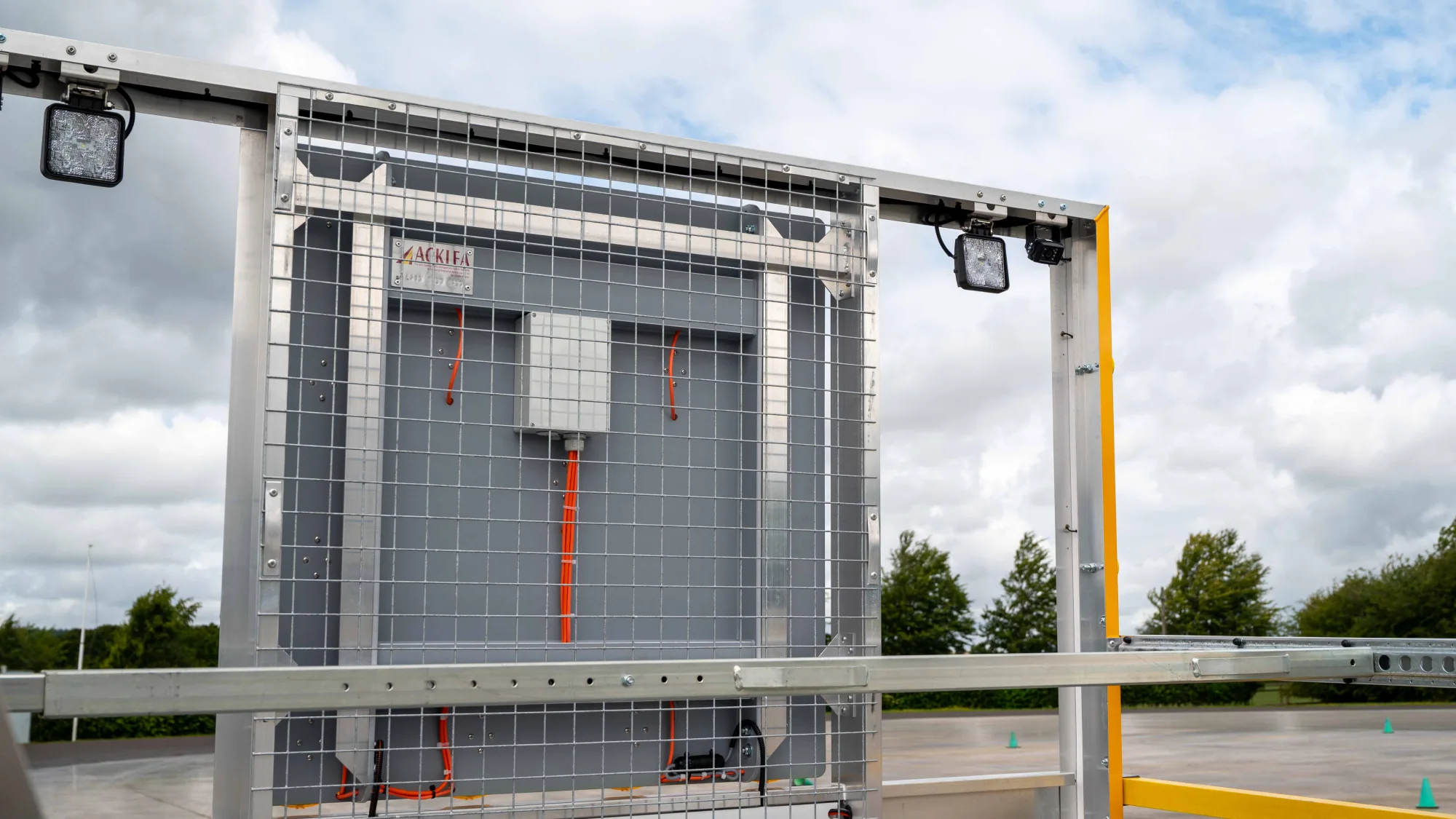

<li>Fixed rear gantry configuration</li>

<li>LED warning-light package, including 700mm light bar and amber flashers</li>

<li>Audible reversing alarm and reversing camera</li>

<li>Twin work lights</li>

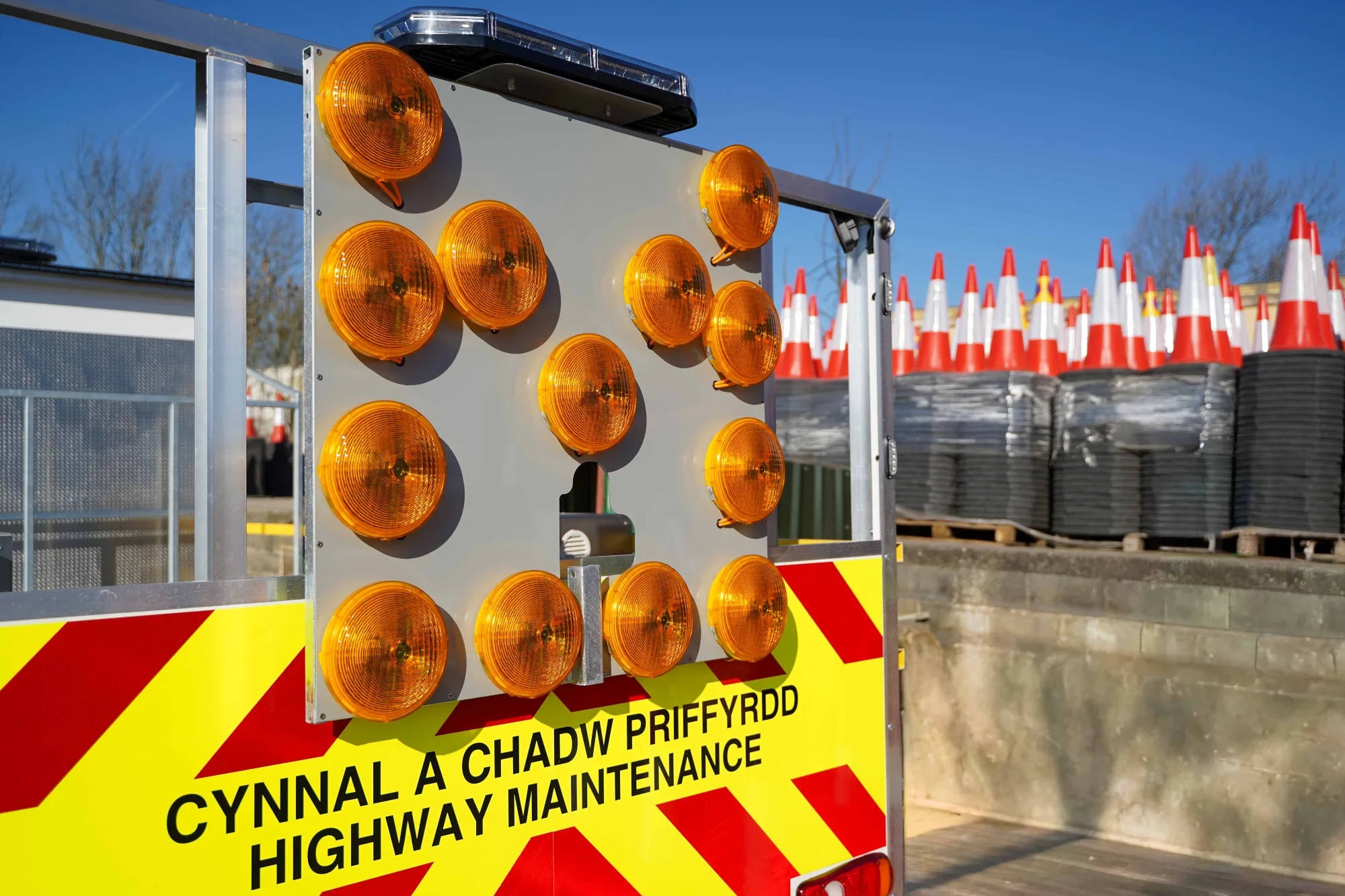

<li>LP13 Mini Light Arrow Board</li>

<li>Chapter 8 markings package, with bilingual option available</li>

<li>Angled wheel boxes with integrated storage (standard on Ford Transit)</li>

</ul>

Optional Features Include:

<li>Additional cameras / DVR recording system</li>

<li>Additional work and scene lighting</li>

<li>Additional compact LED light bars to rear gantry</li>

<li>Kerbside loading ramp</li>

<li>Tow bar with 7 or 13 pin electrics</li>

<li>Angled wheel boxes with integrated storage (optional on other applicable chassis)</li>

</ul>

What brands do AKFS work with?

To provide you with the highest quality conversions, built upon the most durable and reliable chassis available, AKFS works with a range of different vehicle brands to find the most appropriate solution to fulfil your needs, such as:
